Secure. Smart. Scalable.

The EIS ATM E-Surveillance Panel integrates intelligent alerts, energy monitoring, and remote management for ATM rooms. Delivering robust performance in a compact enclosure.

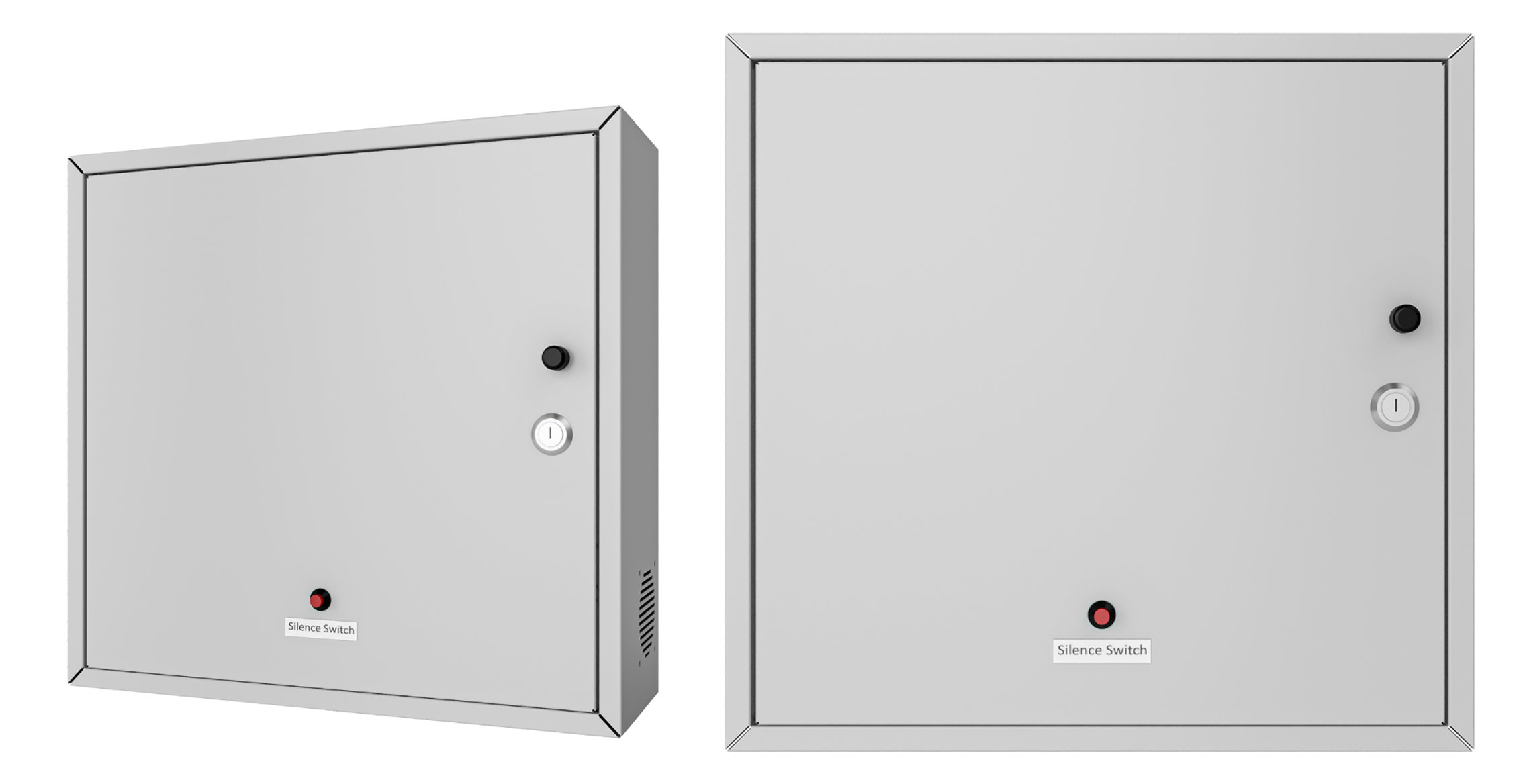

Product devices

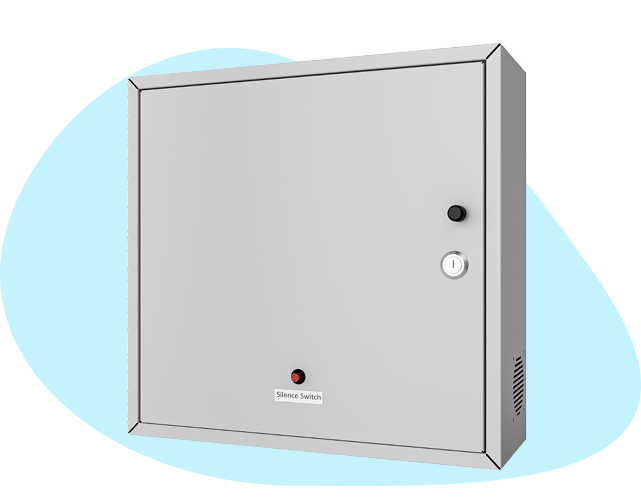

CCMS device

What is a ATM E-Surveillance Panel?

EIS is the e-surveillance panel which provides asset security and energy management for the ATM room. Expandable in zones and designed to allow modular integration with sensors for security & safety. Modular group of panels helps to have detailed features such as energy management, access control and more without compromising on reliability.

Total Control & Intelligence at your Fingertips

12 Independent output relay channels can be remotely controlled through cloud based Web application.
Device can communicate with cloud storage through 4G and LAN connectivity.
Electrical parameters such as voltage, current, power, energy, power factor, frequency can be monitored in real time.
0 zones can be remotely monitored on cloud based Web and Mobile Application.
Protection from human errors like wiring mistakes, etc.
Firmware (IoT Gateway) can be updated remotely.

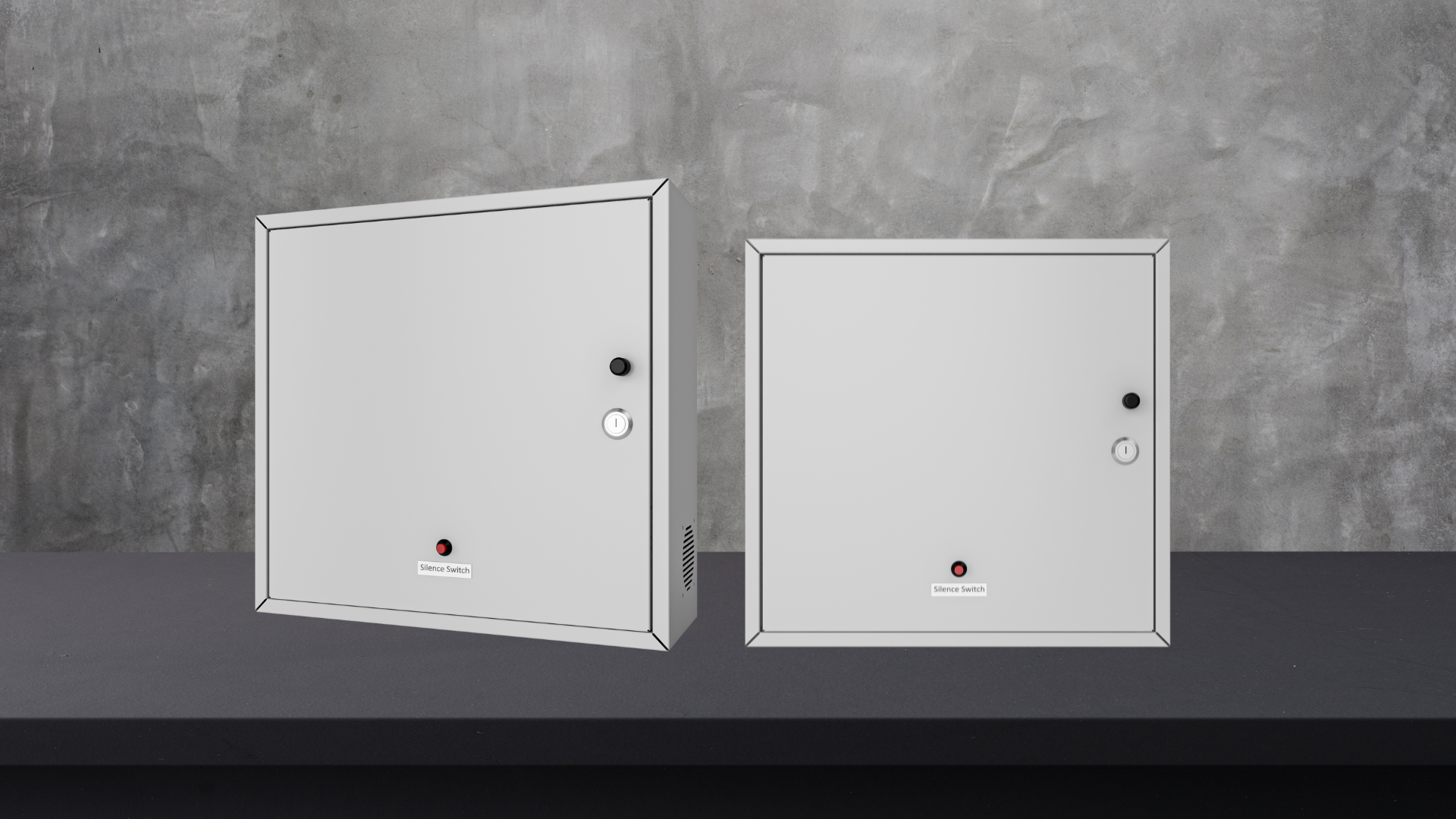

STS variants on desk

Electrical Specifications

Supply Voltage: 150 – 265 VAC, 50-60 Hz.
Power Consumption: 15 VA.
Operating Temperature: 0°C to + 55°C.
Storage Temperature: -20°C to + 70°C.
Inputs: 1 Temperature Sensor, 1 Analog input for smoke sensor,
Protection: Overload, Short Circuit and Battery Terminal Shorting Protection.
Isolation: 1.5 KV DC Isolated Analog and Digital Circuit.
Surge Protection: 4 KV.
Battery Backup: 2 x 7 AH rechargeable battery.

Decorative Background

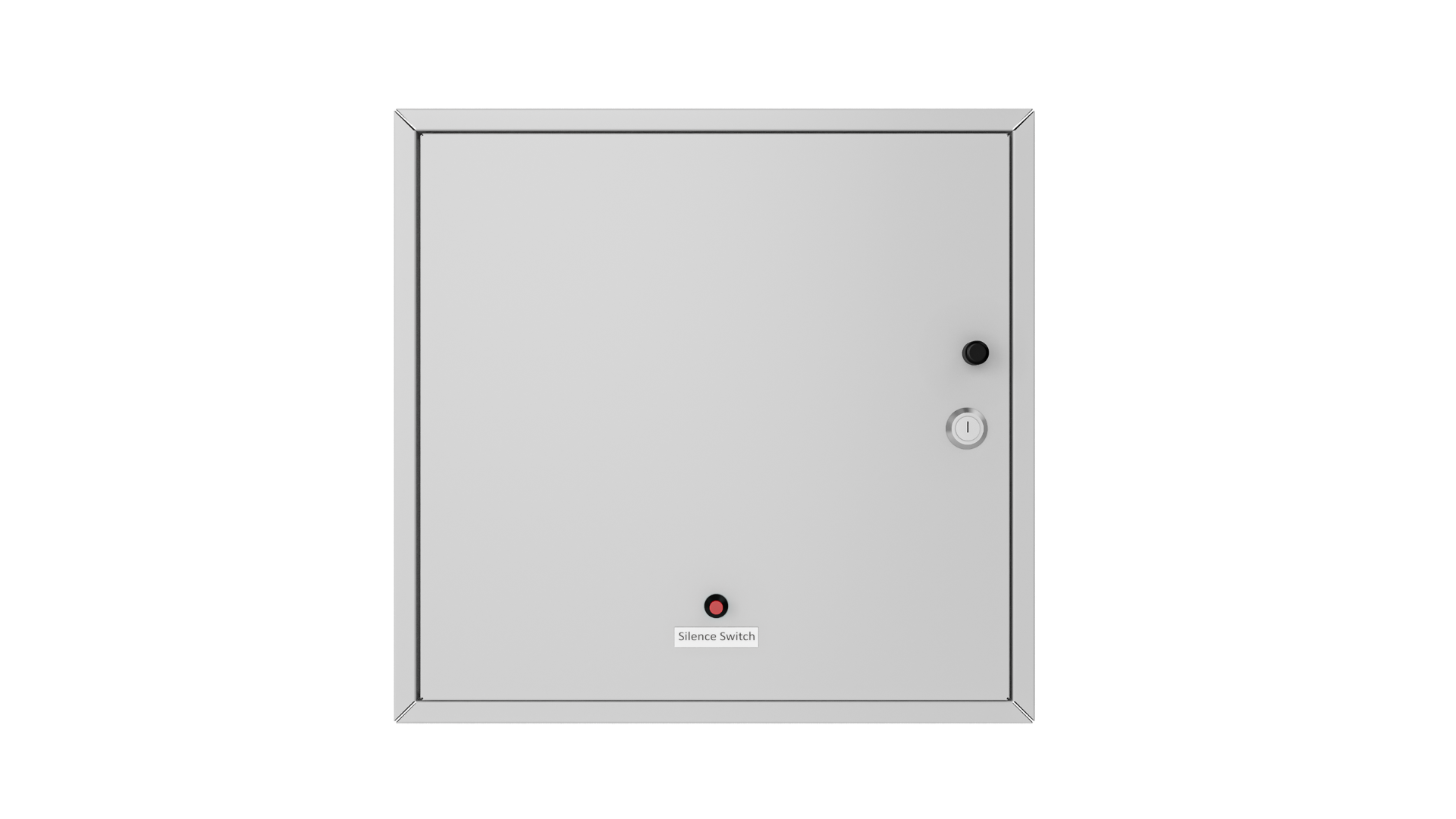

STS front

Product Variants

Product Code	Description	Communication	Datasheet
ESP-28Z	28 Zone E-Surveillance Panel	LAN / Wi-Fi	Download PDF
ESP-14Z	14 Zone E-Surveillance Panel	LAN / Wi-Fi	Download PDF
ESP-7Z	7 Zone E-Surveillance Panel	LAN / Wi-Fi	Download PDF

Accessories

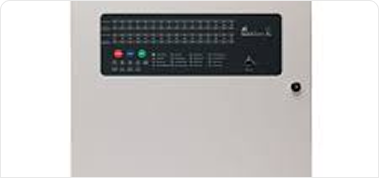

12 Zone Card

12 Zone Card

Supports up to twelve input zones for enhanced security coverage. Ideal for large ATM installations requiring multiple sensors.

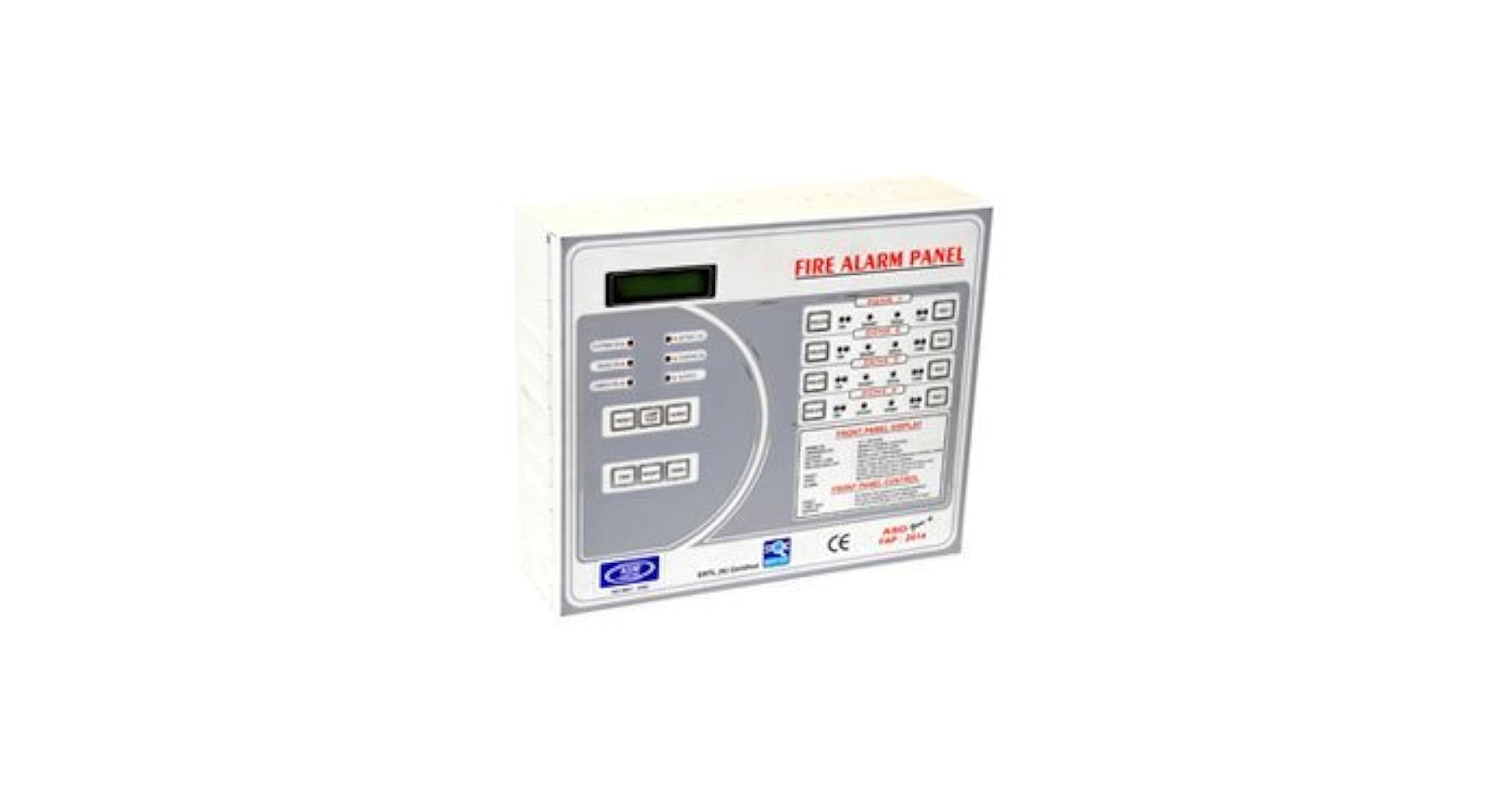

6 Zone Card

6 Zone Card

Handles up to six independent zones for compact ATM sites. Provides reliable input monitoring for critical sensors.

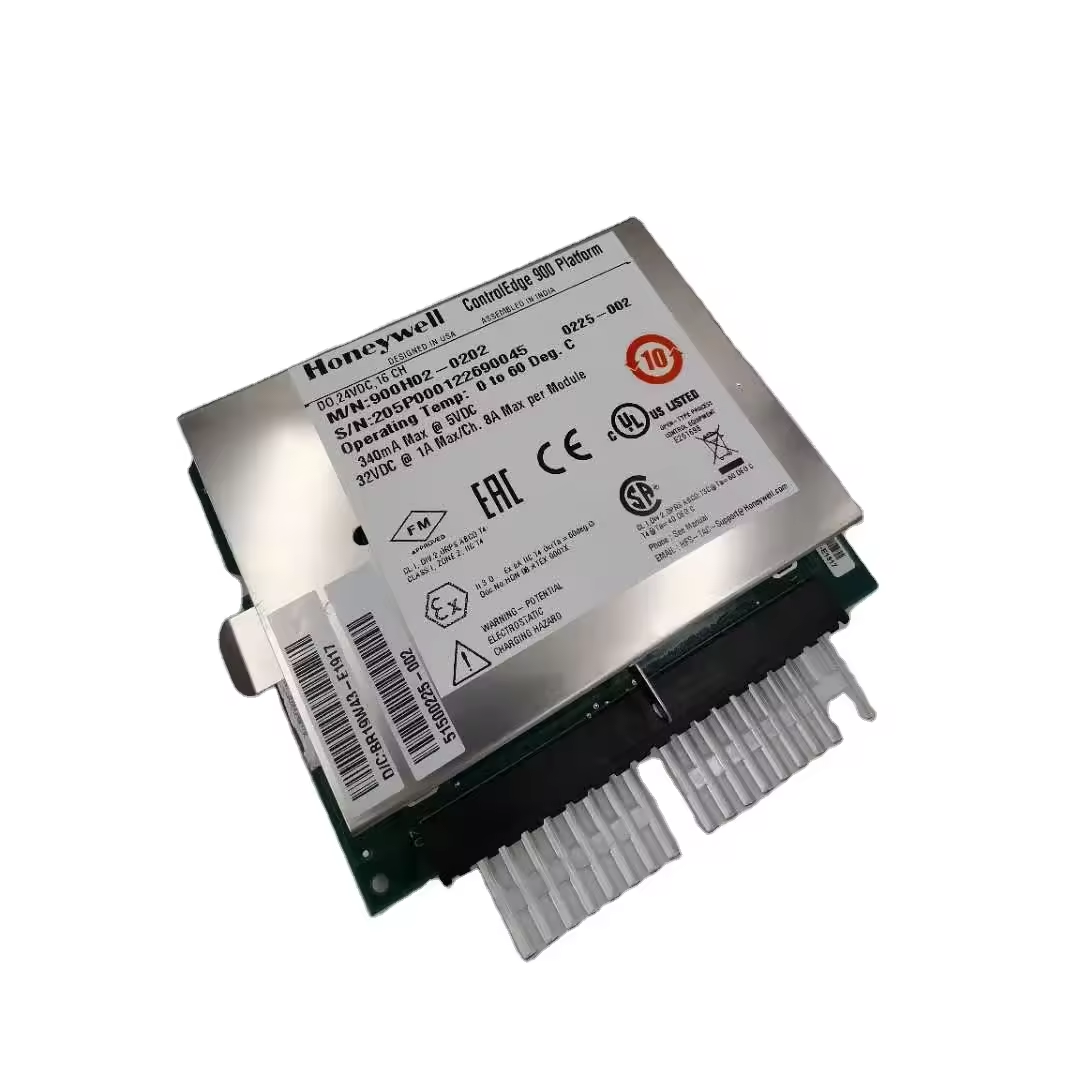

Analog Zone Card

Analog Zone Card

Designed for analog sensor integration with high accuracy. Ensures smooth compatibility with legacy monitoring systems.

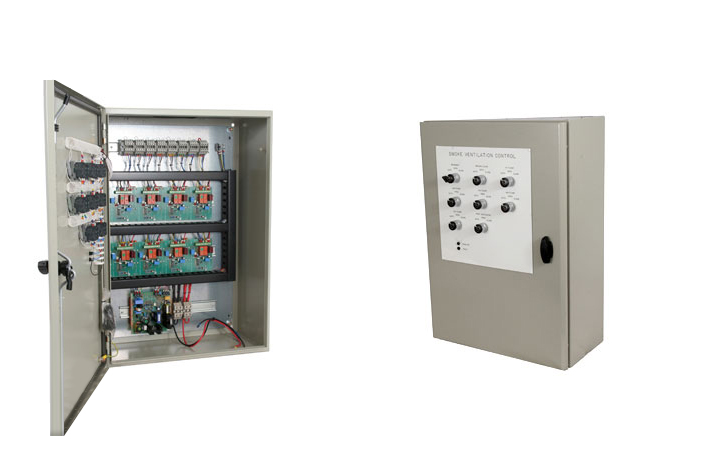

Smoke Zone Card

Smoke Zone Card

Detects smoke levels to trigger early fire alerts. Improves overall ATM safety and environmental monitoring.

Energy Management System

Energy Management System

Monitors and optimizes power consumption. Reduces operational costs while improving system efficiency.

Keypad

Keypad

Durable keypad designed for secure user input. Features tamper-resistant build for ATM applications.

Thermal Sensor

Thermal Sensor

Tracks temperature variations within ATM enclosures. Helps prevent overheating and equipment damage.

Vibration Sensor

Vibration Sensor

Detects unusual vibrations indicating potential tampering. Adds an extra layer of physical security.

Door Sensor

Door Sensor

Monitors door open and close status. Essential for intrusion detection and maintenance alerts.

Glass Break Sensor

Glass Break Sensor

Detects breaking glass through acoustic signals. Provides quick response to vandalism or forced entry attempts.

Magnetic Contact Sensor

Magnetic Contact Sensor

Uses magnetic field detection for open/close monitoring. Commonly installed on ATM doors and panels.

Shutter Sensor

Shutter Sensor

Tracks ATM shutter movement to prevent unauthorized access. Ensures transaction security and uptime.

Battery

Battery

Provides reliable backup power during outages. Keeps security and monitoring systems active.

Cables

Cables

High-quality cables for data and power connections. Designed for durability in ATM environments.

GPIO Switch

GPIO Switch

Offers programmable input/output control for devices. Enables flexible system integration.

PIR Sensor

PIR Sensor

Detects motion through infrared technology. Triggers alarms when unauthorized presence is detected.

Heater Temperature Sensor

Heater Temperature Sensor

Maintains optimal operating temperature in cold climates. Ensures ATM components perform reliably year-round.

Choose the Right Panel for your Needs

Compare features, functionalities, and specifications across our panel models to find the perfect fit for your ATM security and energy management requirements.

4-Zone Panel

4 Intrusion Zones
1 Smoke Detection Zone
Ethernet (TCP/IP)
AES-128 Encryption
Remote Monitoring & Control
5+1 OTP User
3 Relay Outputs
7AH Battery Backup
5 Years RTC Backup
Optional Keypad Support
Basic Zone Scheduling
FOTA (Firmware Update)
LCD Displays
Basic Logs
No Energy Monitoring
Basic ON/OFF
Compact Wall Mount
ATMs, Small Offices, Retail Kiosks

10-Zone Panel

10 Intrusion Zones
1 Smoke Detection Zone
Ethernet (TCP/IP)
AES-128 Encryption
Remote Monitoring & Control
20+1 OTP User
5 Relay Outputs
7AH Battery Backup
5 Years RTC Backup
Optional Keypad Support
Advanced Zone Scheduling
FOTA (Firmware Update)
LCD Displays
Up to 2Mbit Storage
No Energy Monitoring
Time-based ON/OFF
Medium Wall Mount
Mid-size Sites, Banks, Branches

36-Zone Panel

36 Intrusion Zones
1 Smoke Detection Zone
Ethernet (TCP/IP)
AES-128 Encryption
Remote Monitoring & Control
10 Users + 1 OTP + Role Configurable
12 Relay Outputs
2 × 7AH Battery Backup
5 Years RTC Backup
Up to 4 Keypad Supported
Full Configurable Per Zone
FOTA (Firmware Update)
16×2 LCD Displays
1000+ Metering, 1500 Alarms
Energy Monitoring
Fixed, Hybrid, Instant
Large Wall Mount
Large Sites, Critical Infra, Command Centers

Designed for Diverse Applications

Windmill

BFSI

Jewellery Shops

Electrical Panel

Smarter Surveillance Starts Here

Discover how the ESS Panel can elevate your security, optimize energy usage, and give you full control, wherever you are.
